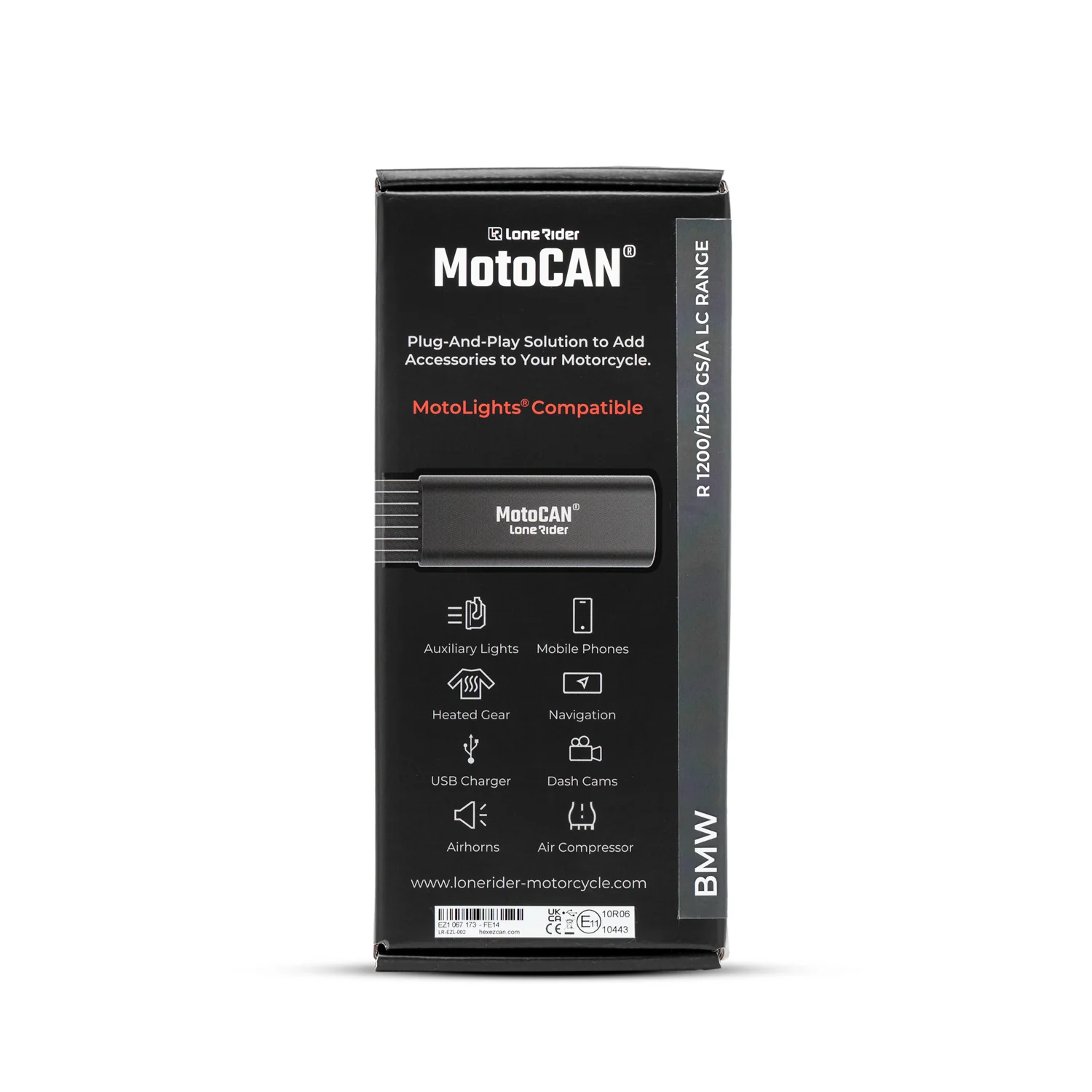

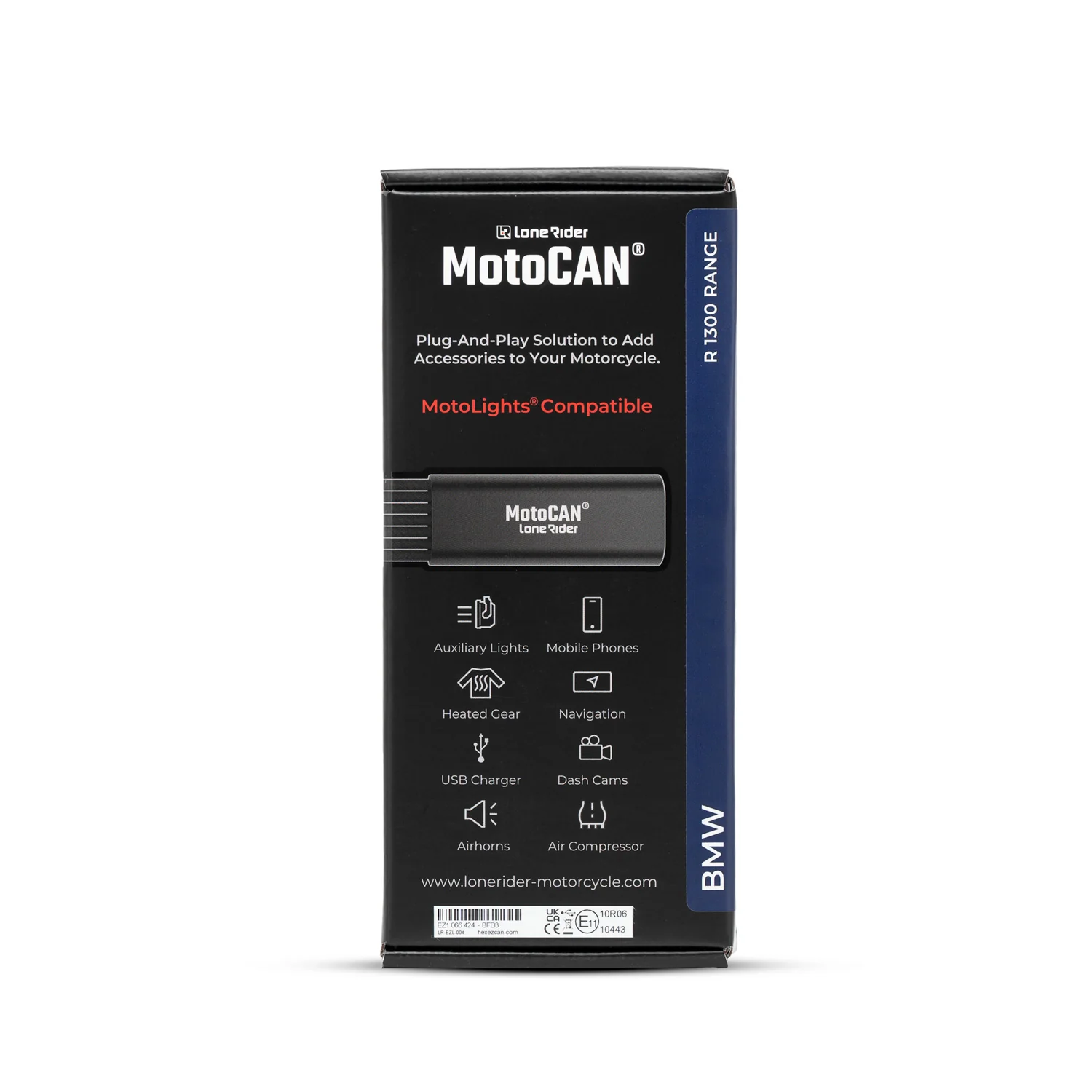

The MotoCAN® is designed to be directly connected to your motorcycle, interfacing with its CAN-bus system. This offers an incredibly adaptable and effortless plug-and-play solution for incorporating additional components to your bike including Motorcycle Lights.

This eliminates the necessity of wire cutting, which could potentially invalidate your warranty. With the MotoCAN, you gain the ability to securely oversee your accessories, personalize your motorcycle, and enhance its safety for a smoother riding experience.

Lone Rider MotoCAN can power and control Motorcycle Lights and other motorcycle accessories. Upgrade to control lights and other accessories automatically and directly from the bikes button clusters

MotoCAN is a Plug-in-Play solution to seamlessly control:

Motorcycle Lights
LIN Smart Lights
Auxiliary Lights
Brake Lights
Air Horns
GPS Navigation
Dash Cams
Heated Gear
Air Compressor
USB Chargers
And other accessories

MotoCAN stands out from other CANBUS devices as has been programmed to get the full range of Motorcycle Lights features and functions. These extended features and functions are compatible with MotoCAN and Motorcycle Lights.

KEY FEATURES

One device controls all functions
Unified system management
Adds enhanced safety features
Maintains manufacturer warranty
Connects directly to the CAN-Bus
Discreet design – fits seamlessly under the seat
Simple software setup via USB
Four independently fused electronic channels
Waterproof and dust-resistant
Motorcycle Lights Compatible
LIN compatible
4x 10A outputs (25A, max 20s)
Self-resettable electronic fuses
3-wire brightness control

DOWNLOAD SOFTWARE

https://www.lonerider-motorcycle.com/motocan-software

COMPATIBILITY LIST

https://www.lonerider-motorcycle.com/pages/motocan-compatibility

WHATS IN THE BOX?

1x Bike specific MotoCAN
3x MT 3-Pin Blanking Plugs (to attach other accessories)
1x Micro USB Dust Cover
3x MT 3-Pin Male Connector Stub Set
3x MT 3-Pin Rubber Plugs
20x Zip Ties
1x USB-USB micro Cable

The MotoCAN is required to use and customize all Moto Light features. It is recommended that the Motorcycle Lights be exclusively used with MotoCAN. To know what MotoCAN you need for your specific bike, use the VIN decoder.

Please note: If you can't find your bike model under "Variant" above, you can order the Hex Innovate Gen II ezCAN to be used with your Motorcycle Lights until we have a MotoCAN available for your bike. In this case, order the variant "Motorcycle Lights set (2 pods) | No MotoCAN".

Compatible CANbus system:

Lone Rider MotoCAN
HEX ezCAN Gen2 (post V2408 software version)

NOT compatible with :

Any other CANbus system
DENALI CANsmart
DENALI DialDim
Clearwater CANopener

TECHNICAL FEATURES

MotoCAN Hardware specifications
Voltage supply	6V to 18V
System fuse rating	30A, automotive mini blade fuse
Maximum continuous current	30A (25A recommended)
Current consumption (operating)	25mA (typical)
Current consumption (sleep)	750µA (typical) 1mA (max)
Number of output circuits	Four, each with switched 12V power, Ground and PWM/data brightness control wire
Output circuit current	10A per circuit (continuous) 25A (max) for 25 seconds
Output circuit fusing	Electronic fuses, configurable from 1A to 25A
Output circuit 3rd wire (PWM/data control)	40mA (short circuit current)
Measurement ranges: Output current CAN-bus voltage Horn input Switch input	0 to 72A 0 to 22V 0 to 22V 0 to 3.3V
Internal thermal protection	90ºC maximum internal temperature
Transient protection	As per UN ECE Regulation 10 (Revision 5)
CAN connectivity	1x CAN 2.0B
USB connectivity	USB V2.0 full speed, micro B-type connector
LIN connectivity	Configurable LIN master (White power circuit)
Water and dust protection	Sealed unit. Waterproof USB connector with dust cover and sealed connectors

PRODUCT CERTIFICATION

https://www.lonerider-motorcycle.com/pages/compliance/

Lights

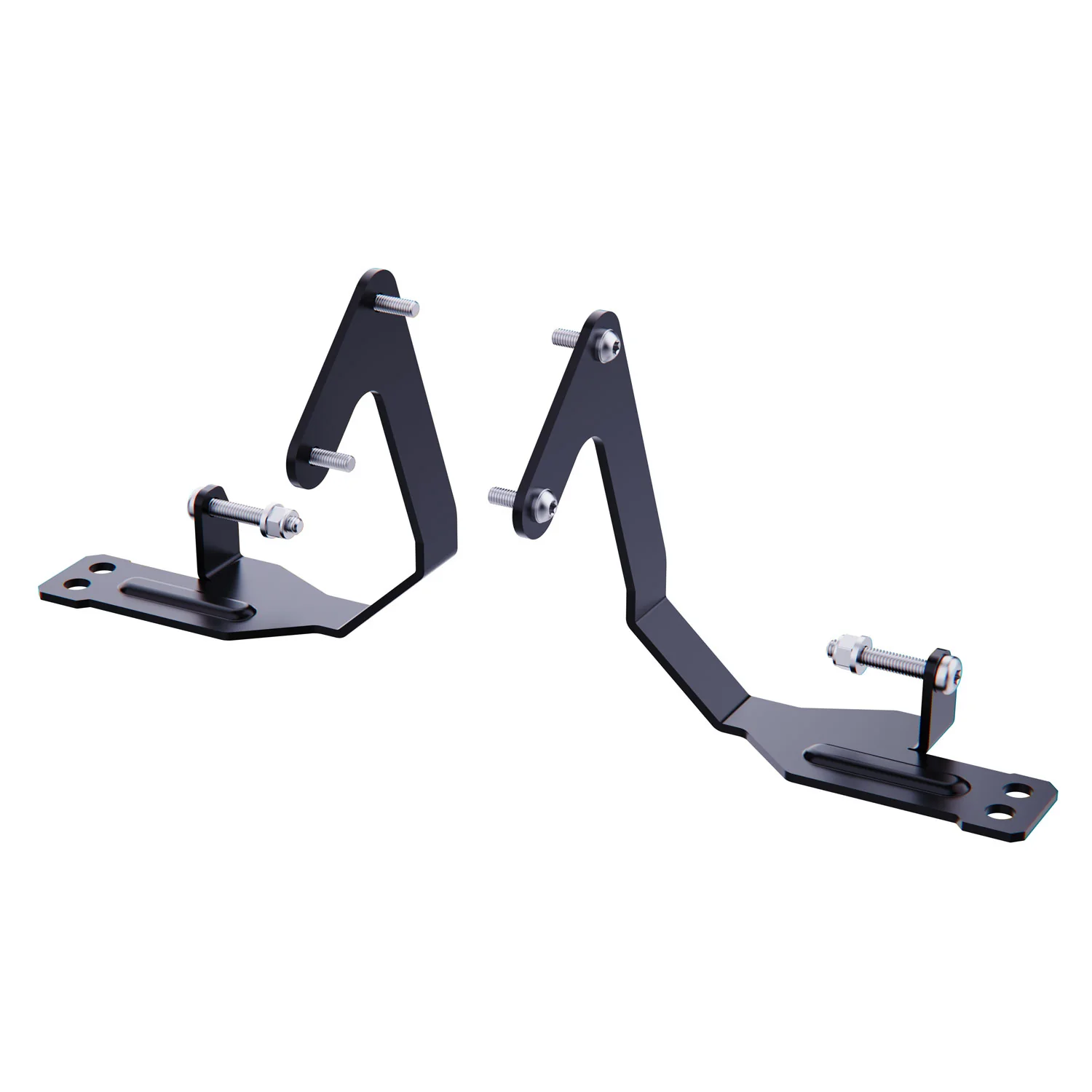

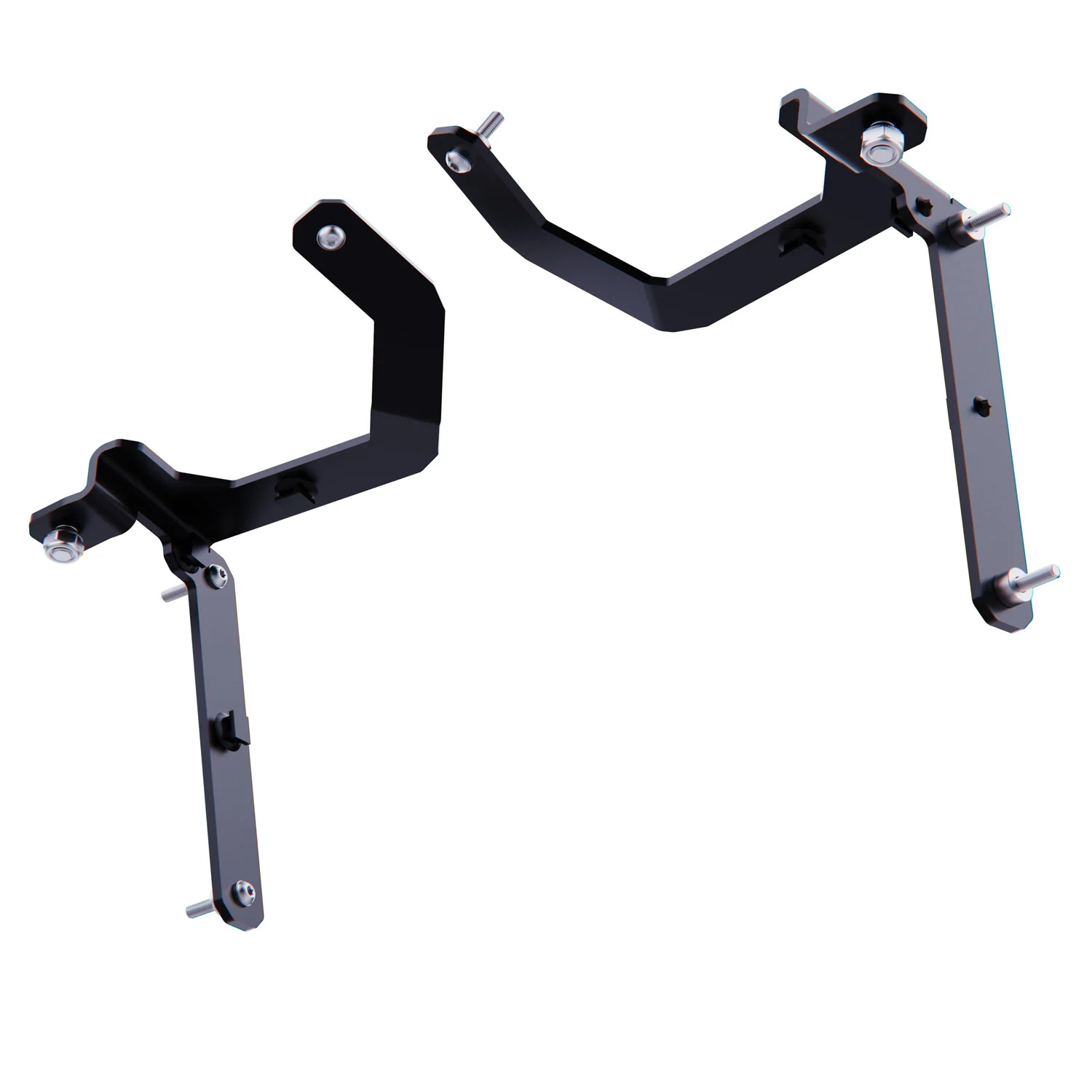

Under Nose Mount for Motorcycle Lights

MotoCAN® – Motorcycle Accessories Manager

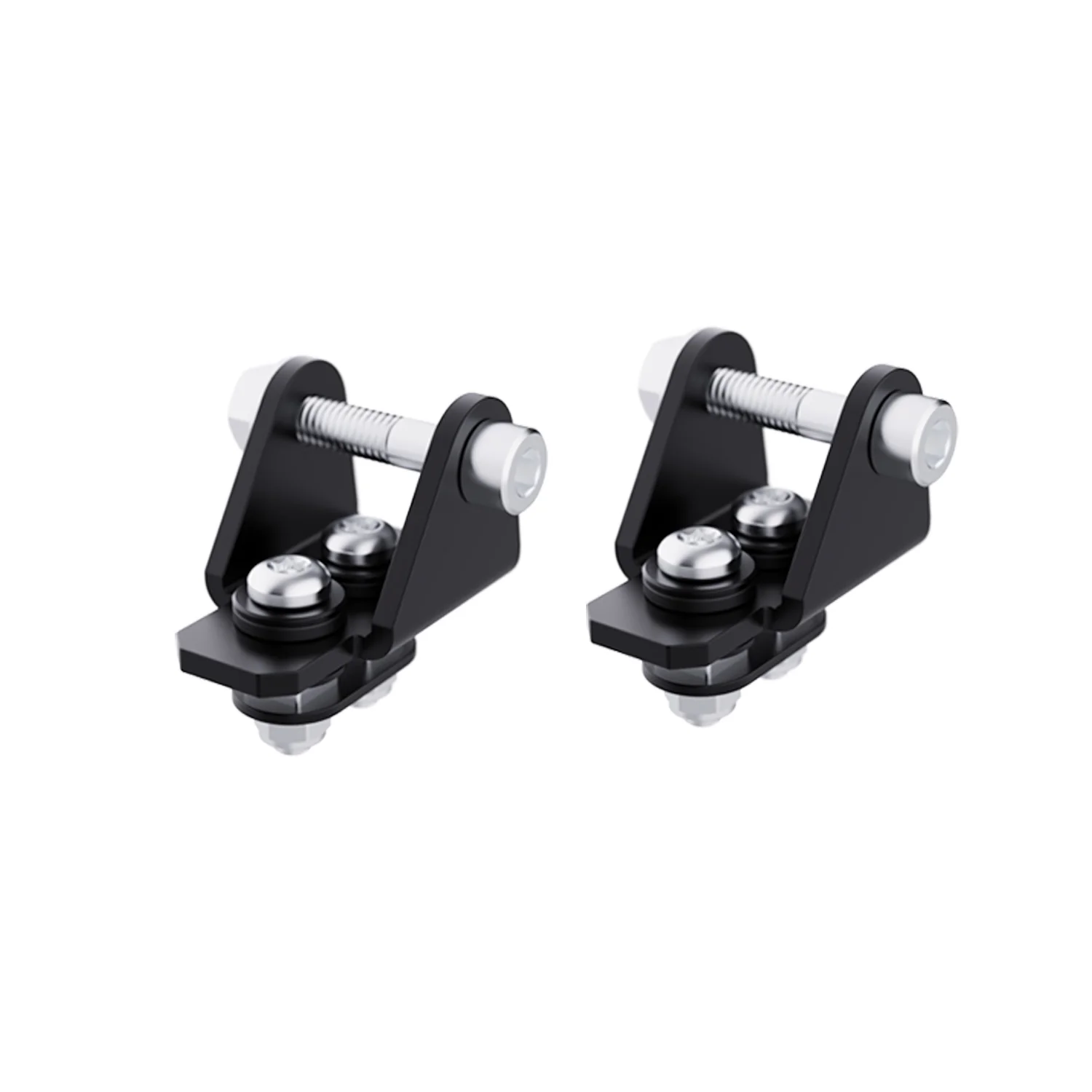

Motorcycle Lights BMW OEM Crash Bar Aux Light Mount Adapter

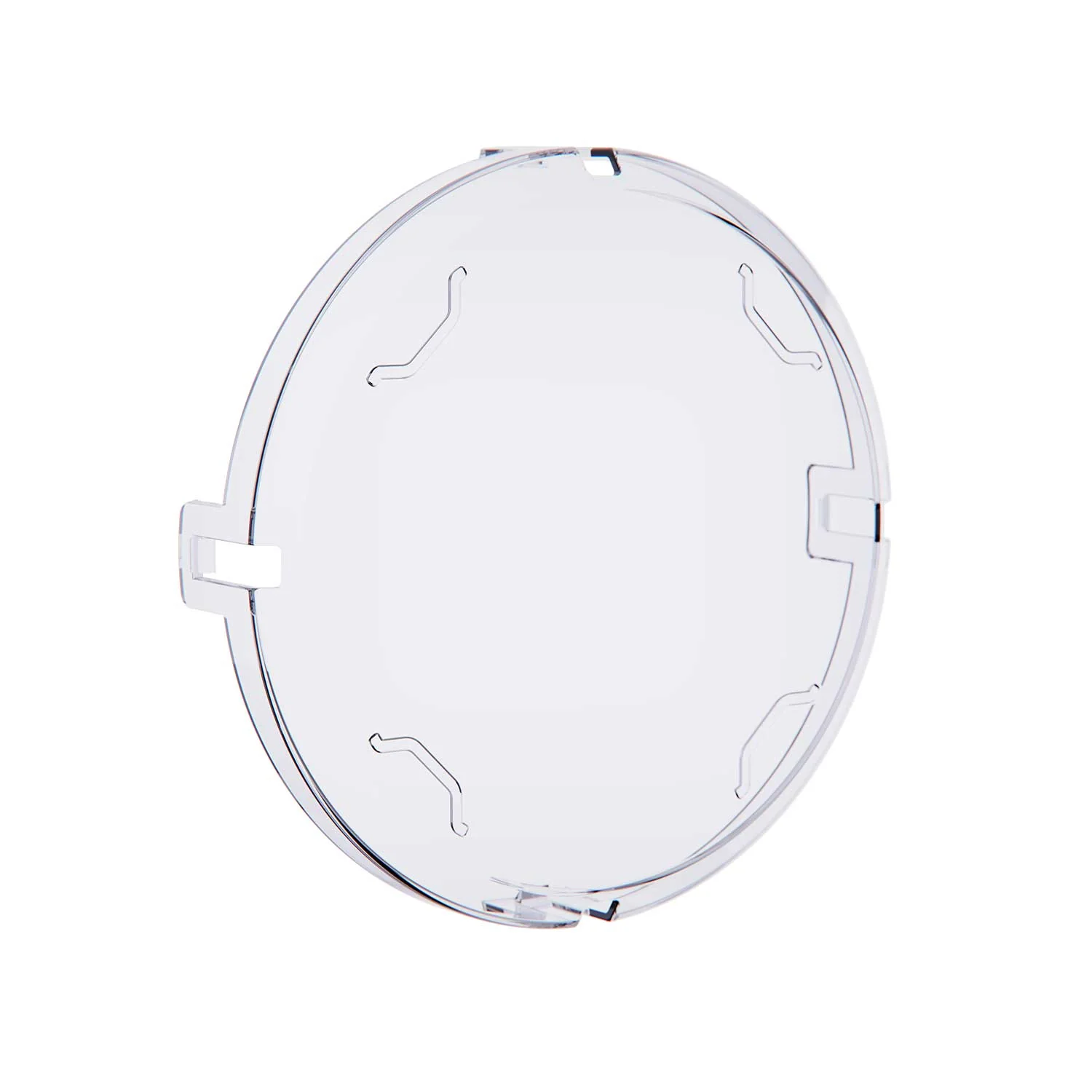

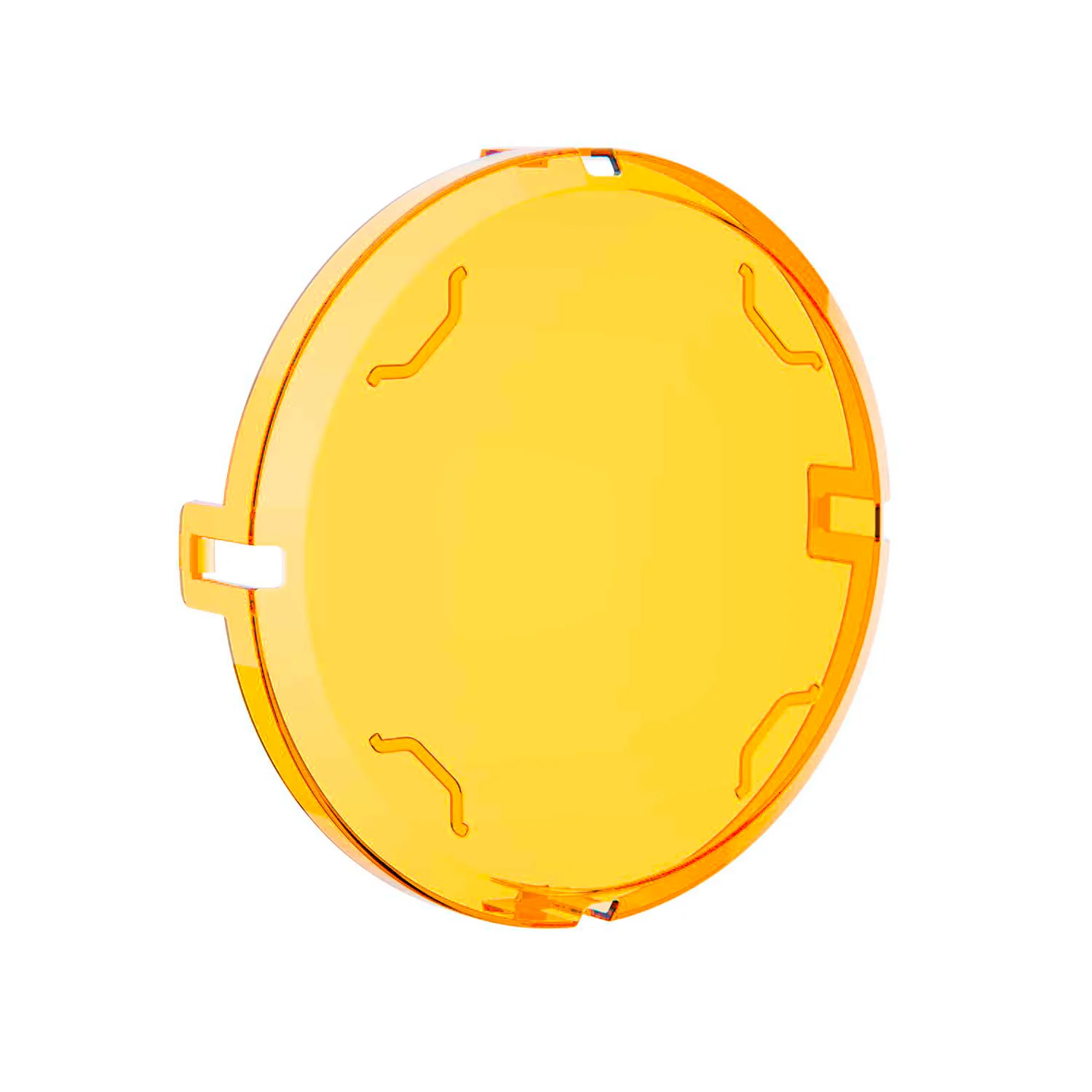

Motorcycle Lights Lens Protector Set
